COMMERCIAL DISHWASHER
Compact, front loading and with simple two button controls for effortless, consistently clean results, the G400 is the perfect glasswasher for where
space is limited.
The G400 is an easy to operate glass washer with a 400 x 400mm basket that holds 16 pint-sized glasses. With its two minute wash cycles, this machine is capable of cleaning up to 480 pint glasses per hour.
Company Name
WINTERHALTER
Model Name
GLASS WASHER
Model Number
G400
Dimension( in mm)
400 x 400
Start button for 1-button operation. Automatic self-cleaning programme. Temperature display. Operation of the U50 is easy and intuitive.
Double-skinned design. Effective filtration. Smaller tank volume for fast start. The U50 is designed for extremely cost-effective operation.
Sparkling clean. Hygienically clean. The U50 guarantees first-class wash results. For cleanliness and hygiene of the highest standard.
Fast maintenance and troubleshooting: the integrated error management system and simple access to the components make the U50 particularly easy to service.
Model
U50
Number of Programmes
2
Rack Dimensions
500 x 500 mm
Tank Capacity
15.3 Litre
Rinse Water Consumption
2.4 Litre
Tank Temperature Standard / High Temp
62°C / 66°C
Rinse Temperature
85°C
Max Water Inlet Temperature
60°C
Circulating Pump (P1)
0.5 kW
Noise Emission
59 dB(A) Max
Packaging Dimensions
720 x 712 x 1020
Splash Guard
IP X3
Weight (Nett / Gross)
66 / 76
WASTE WATER HEAT RECOVERY

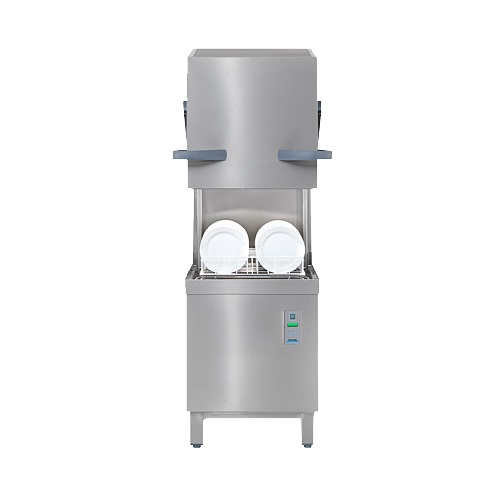

-The standard equipment of the P50 includes »EnergyLight« waste water heat recovery: the heat exchanger uses the energy from the waste water to heat the cold inlet water. The advantage: you save on resources and energy costs are reduced by up to 10% per wash cycle.
TRIPLE FILTRATION
-The cleaner the wash water, the better the wash result. That’s why the P50 comes with a triple wash water filtration system. Coarse dirt is caught by a strainer. A fine filter with removable filter cassette takes care of smaller dirt particles. And the pump inlet filter protects the pump from mechanical damage. The result: continually clean wash water for the best wash results.
HYGIENE INTERIOR
-Behind the P50 rack passthrough dishwasher there is a carefully considered concept for perfect hygiene and convenient cleaning. The interior of the machine is smooth and has no joints. There is a special hygienic rack guide. The tank is deep-drawn and has a hygienic heating element. All this means: there are no nooks, crannies or concealed corners in the interior in which dirt can accumulate or deposits can form. In conjunction with the integrated self-cleaning programme, the cleaning work required by your staff is therefore kept to a minimum. A neat solution.
SELF-CLEANING PROGRAMME
-The last thing you do before you go home: the P50 has a guided self-cleaning programme to ensure the machine works perfectly for many years. Fully automatic cleaning of the interior of the machine is started via the display. User-friendly pictograms on the display then guide you through the subsequent manual cleaning stages. The drain pump takes any residual water out of the machine and prevents deposits and odours.
TEMPERATURE DISPLAY
-Better safe than sorry: with just the press of a button on the P50's control display you can see exactly what the current tank and boiler temperatures are. This enables you to monitor the temperature quickly and easily, safe in the knowledge that hygiene is guaranteed throughout the wash cycle. Hygienic cleaning starts from a temperature of 60 °C.
Model
P50
Number of Programmes
2
Theoretical Capacity3
60/20 racks/h
Rack Dimensions
500 x 500 mm
Tank Capacity
28 Litre
Rinse Water Consumption
2.4 Litre
Tank Temperature Standard / High Temp
62°C / 66°C
Rinse Temperature
85°C
Max Water Inlet Temperature
60°C
Tank Heating
2.5 kW
Boiler Heating
9 kW
Circulating Pump (P1)
0.6 kW
Noise Emission
63 dB(A) Max
Packaging Dimensions
770 x 880 x 1605mm
Splash Guard
IP X3
Weight (Nett / Gross)
98 / 123

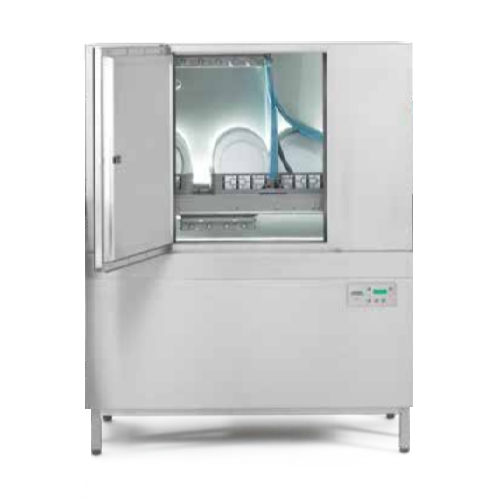

Rapid Washing Speed - The major strength of the C50 is in its capacity: It can reach up to 260 racks per hour. And all this with compact dimensions and low space requirements. Three different speed levels allow you to adjust the wash cycle to suit the volume of wash items. With this, you are ready for anything. Even at peak times.
Hygiene Safety - The C50 is specifically designed for first-class wash results, hygienic cleanliness and excellent drying: With a standard tank heating performance of 18 kW, upgradeable to a whopping 27 kW (HighTemp), and a thoroughly considered hygiene design. The boiler heating always operates with a stable 27 kW independent of the water pressure provided on site: This guarantees consistent and perfect rinse results.
User-friendly - The C50 is simple: Simple to install, simple to operate and simple to clean. The display is self-explanatory and language-neutral. Automatic programmes help you during the cleaning and ensure fast emptying and filling of the machine. Thus, your C50 is ready for use in no time at all.
Model
C50
Tank capacity (rinse tank)
95 litre
Rack dimension
500 x 500 mm
Clear entry height
450 mm
Tank temperature (HighTemp)
62 (>71)°C
Rinse water temperature
85°C
Wash pump
1.6 kW
Noise emission
<70 dB(A)
Splash guard
IPX5
Max. inlet water temperature
60°C
Required water flow pressure with non pressurized boiler (bar/kPA)
1.5-6.0 / 150-600
Performance
Up to 165/200 racks per hour
Total length / depth
3700 / 815 mm
Loading area
Inlet table with sink and pre-spray unit, space for two racks
Unloading area
Outlet roller table, space for two racks
